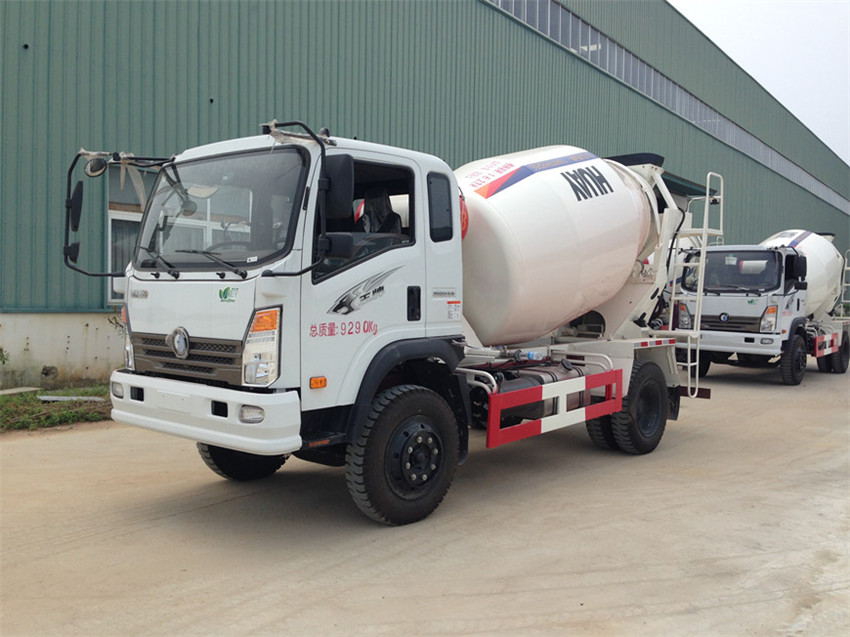

Model 1 : Sinotruk Haoman 3-5 cubic mixer truck
Features:
Sinotruk Haoman 3-5 cubic mixer, engine: Yuchai 130 horsepower-Euro V emission
Detailed vehicle parameters
| Main technical data of Sinotruk Haoman 5 cubic mixer truck products | |||
| product name | Sinotruk Haoman 5 cubic mixer truck | Dimensions (mm) | 6910×2490, 2300×3600 |
| Number of axes | 2 | Displacement (ml) | 4200 |
| Number of tires | 6 | Stirring volume | 5 cubic meters |
| Total mass (kg) | 13570 | Number of springs | 13/14/12, left 14 right 13/left 14 right 13/12 |
| Rated mass (kg) | 7200 | Front and rear bridge | 3.9 tons front axle 9 tons rear axle |
| Curb weight (kg) | 6175 | Maximum speed (km/h) | 83 |
| Front track | 1980, 1760 | Rear track | 1860,1750 |
| Gearbox | 6 gears | ||
| Emission Standards | GB17691-2005 Euro V, GB3847-2005 | ||
| engine | Yuchai 130 horsepower-Euro 5 emission | ||
Model 2: Sinotruk ace 4-5 cubic mixer truck
Features:
Sinotruk’s ace 4-5 cubic mixer truck, engine: Yuchai 130 horsepower-Euro 5 emissions
Detailed vehicle parameters
| Main technical data of Sinotruk's ace 4-5 cubic mixer truck | |||
| product name | Sinotruk ace 4-5 cubic mixer truck | Dimensions (mm) | 7300×2350×3150 |
| Number of axes | 2 | Displacement (ml) | 4200 |
| Number of tires | 6 | Stirring volume | 4-5 cubic |
| Total mass (kg) | 11490 | Number of springs | 11/11+9,11/10+8 |
| Rated mass (kg) | 4800 | Front and rear bridge | 4.2 tons front axle 10 tons rear axle |
| Curb weight (kg) | 6495 | Maximum speed (km/h) | 83 |
| Front track | 1750,1790 | Rear track | 1700,1700 |
| Gearbox | Fast 9th gear | ||
| Emission Standards | GB17691-2005 Euro V, GB3847-2005 | ||
| engine | Yuchai 130 horsepower-Euro 5 emission | ||
Welcome to Chengli Special Automobile Co.,Ltd, any questions contact us via: sales@chengli.co
