Features:

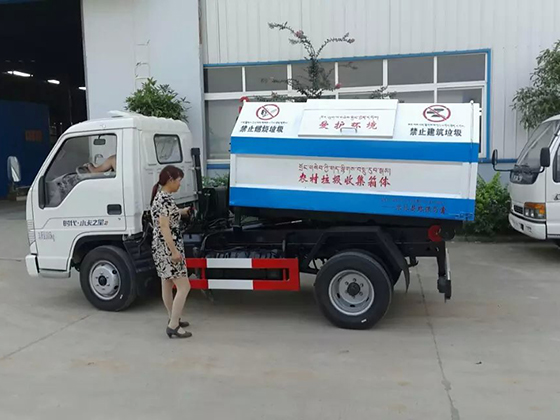

Foton small truck star 3 cubic hook arm garbage truck (CLW5041ZXXB5), chassis model BJ1042V9JB5-A1, emission standard GB17691-2005 Euro V GB3847-2005
Detailed vehicle parameters
| Foton small truck star 3 cubic hook arm garbage truck (CLW5041ZXXB5) product main technical data | |||
| product name | Foton small truck star 3 cubic hook arm garbage truck (CLW5041ZXXB5) | Dimensions (mm) | 4565×1870,1730×2120,2540 |
| Chassis model | BJ1042V9JB5-A1 | Cargo compartment size (mm) | ×× |
| Front passenger | 2 | Rated passenger (person) | |
| Total mass (kg) | 4294 | Approach/departure angle (°) | 18/28 |
| Rated mass (kg) | 1499 | Front suspension/rear suspension (mm) | 1115/850 |
| Curb weight (kg) | 2665 | Maximum speed (km/h) | 105 |
| Emission Standards | GB17691-2005 Euro V, GB3847-2005 | ||
| Vehicle description | 1. The height of the whole vehicle is (mm): 2120 when the optional air deflector is not installed. 2. The protective material: Q235A carbon steel, the connection method: the left and right side protection and the auxiliary beam are welded together, and the rear lower protection and the frame Adopt welding connection, rear protective section size (mm): 120×50, rear protective ground clearance (mm): 40.3, ABS system controller model: CM4Y. ABS system controller manufacturer: Guangzhou Branch Mi Auto Electronic Control Technology Co., Ltd. 4. The position of the text spraying and the color of the vehicle can be changed. 5. Correspondence between engine and fuel consumption value (L/km): 4A2-68C50/12.04. | ||
| Foton Xiaokazhixing 3 cubic hook arm garbage truck chassis parameters | |||
| Chassis model | BJ1042V9JB5-A1 | Fuel type | Diesel oil |
| Number of axes | 2 | Front track (mm) | 1345 |
| Wheelbase (mm) | 2600, 2850 | Rear track (mm) | 1240,1280 |
| Number of tires | 6 | Tire specifications | 6.00-15LT 10PR,6.00R15LT 10PR |
| Foton Xiaokazhixing 3 cubic hook arm garbage truck engine parameters | |||
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
| 4A2-68C50 D19TCIE1 4A2-88C50 |
Anhui Quanchai Power Co., Ltd. Kunming Yunnei Power Co., Ltd. Anhui Quanchai Power Co., Ltd. | 2270 1912 2270 |
50 75 65 |
